Introduction :

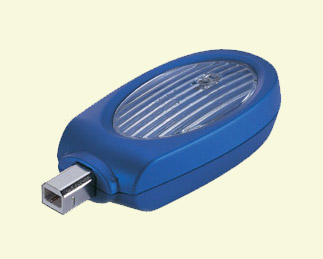

This device provides the easiest plug-n-play wireless printing

From a Bluetooth enabled device with a range up to 100m.

It is designed for mobile users who need fast printing solutions

Without anytime consuming configuration.

Adopting standard Bluetooth SIG 1.1 version and USB 1.1 type

B interfaces, this device is compatible with most Bluetooth

enabled devices and printers on the market.

Features :

• No additional software or driver installation are required.

• Applicable to most of the popular printers in the market.

• Class-1 output power designed for long range up to 100m

• Bluetooth SIG 1.1 compliant.

• Approved by CE, FCC and BQB.

• Plug-n-play wireless printing sharing solution

• Supports Serial Port Profile (SPP)

Standard :

Bluetooth SIG 1.1

• Frequency Range :

• Operating Channel :

79 channels if 1MHz BW

• Modulation :

2.400 ~ 2.4835 GHz (unlicensed ISM band)

• Spread Spectrum :

Frequency Hopping Spread Spectrum (FHSS)

SPECIFICATION

GFSK

• Output Power :

13 dBm (typical)

• Receiver Sensitivity :

• Power Class :

Class-1 with effective range up to100m (line-on-sight)

• Power :

-82 dBm (typical)

• Host Interface :

USB version 1.1 compliant

Power provided by 100~240V DC 6V, AC Power Adapter

• Dimension / Weight :

(88 x 37 x 18)mm 3 / 32grams

(0 ~ 60)°C / (32 ~ 140)°F

• Operating Temperature :

• Bluetooth Profile :

Serial Port Profile (SPP)
