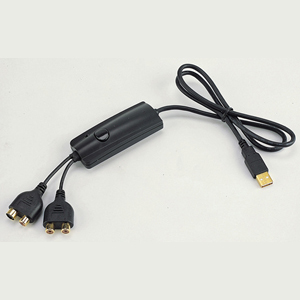

GP-GT200 USB Video Adapter With Audio


Introduction

Congratulations on your purchase of our GP-GT200 USB Video Adapter With Audio. It is the bridge between your PC and analog camera, VCR, camcorder or other video sources. USB Video Adapter With Audio is small enough to fit the palm of your hand and is ideal for notebook, desktop PCs and iMac, which has a snapshot button that allows you to take high quality still photos.

Key Features:

** 640 x 480 resolution still image capture
**
Capture capability 30fps at 320 x 240 (PAL) & 25fps at 352 x 288 (NTSC)
**
Small Wonder - Dimensions are (L) 88mm x (W) 31mm x (H) 21mm ** Stereo Audio input to make best audio synchronization
**
Convert analog audio / video signal to digital through USB
**
Preallotment memory size to speed up capture performance
** Composite or S-Video analog input, NTSC, PAL and SECAM multi system support
**
Support Zoom, Pan and Tilt functions
**
Low CPU Utilization at decompression
**
Support Brightness, Contrast, Hue, Saturation control
**
Low power consumption, ideal for portable computer too
**
High Quality Video Compressor to speed up video frame rate
**
No Battery - No need to install batteries or run off the wall adapter
**
Plug & Play

Specifications:
** Video Input - One RCA composite, one S-Video
**
Audio Input - Stereo L/R Audio
**
Video System -NTSC, PAL and SECAM multi system support
**
Video Format -160x120, 176x144, 240x180, 320x240, 352x288
**
Capture still image 640 x 480 pixels
**
Performance - Up to 30fps at 320 x 240 (PAL) & 25fps at 352 x 288 (NTSC)
**
Selectable USB bandwidth from 0.5Mb/s to 7.5Mb/s
**
Power Source - 5VDC, 330mA (max) through USB port
Application:
** Audio/Video Recording
**
Take Photo
**
Audio/Video e-mail
**
Security Monitoring System
Package Contents
** USB Video Adapter With Audio
**
CD-ROM of drivers and softwares
**
User's Manual
System Requirements
** USB equipped computer
**
64MB of RAM
**
Pentium 266MMX
**
256 color VGA display
**
CD-ROM drive (for installing driver & software)
**
Windows 95 OSR2.1 / 98 / 98SE / ME / 2000 / XP
**
Mac OS 8.6 / 9.0 / 9.1 / 9.21
